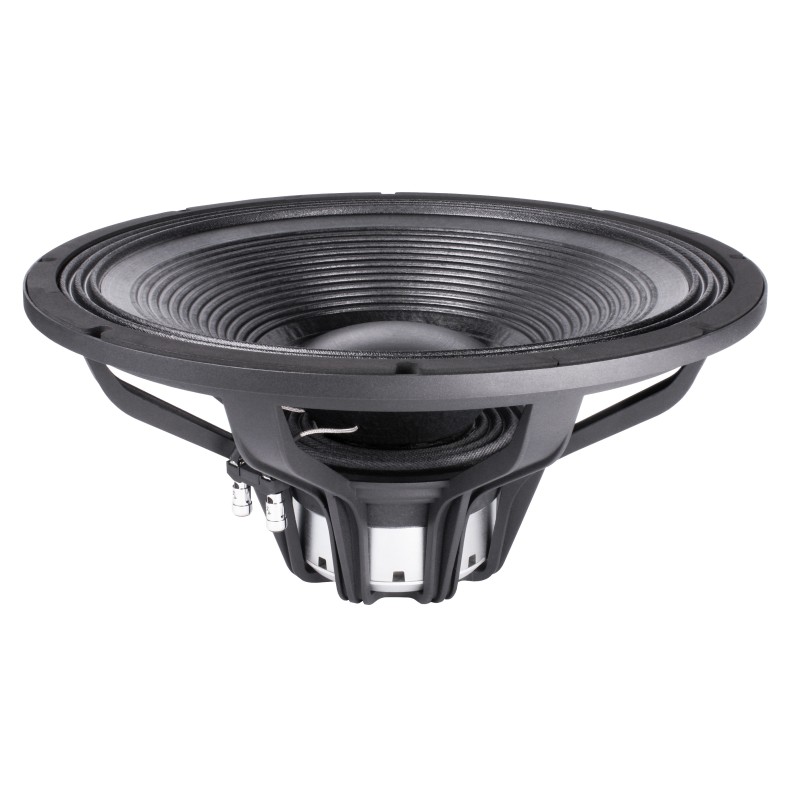

FatalPro 18HP1060
R0.00
Tax included
- 2400 W MAXIMUM POWER HANDLING
- VOICE COIL 100 MM (4.0 IN)
- 66 MM TOTAL EXCURSION (± 33 MM)
- DOUBLE ALUMINIUM DEMODULATION RING
- FREQUENCY RANGE 35÷1600 HZ
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
NOMINAL SPECIFICATIONS
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 215 mm (8.46 in) |
| Flange and Gasket Thickness | 13.9 mm (0.55 in) |
| Net Weight | 7.3 kg (16.1 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 8.7 kg (19.2 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.3 Ohm |
| AES Power Handling (1) | 1200 W |
| Maximum Power Handling (2) | 2400 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 35÷1600 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 28.9 mm (1.14 in) |
| Magnetic Gap Depth | 12 mm (0.47 in) |
| Flux Density | 1.22 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminum |
| Demodulation | Aluminum Ring |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 5.3 dm^3 (0.187 ft^3) |
| Spider Profile | 2x non-adjacent symmetrical variable height waves |
18HP1060
Comments (0)
No customer reviews for the moment.
- 2400 W MAXIMUM POWER HANDLING
- VOICE COIL 100 MM (4.0 IN)
- 66 MM TOTAL EXCURSION (± 33 MM)
- DOUBLE ALUMINIUM DEMODULATION RING
- FREQUENCY RANGE 35÷1600 HZ
