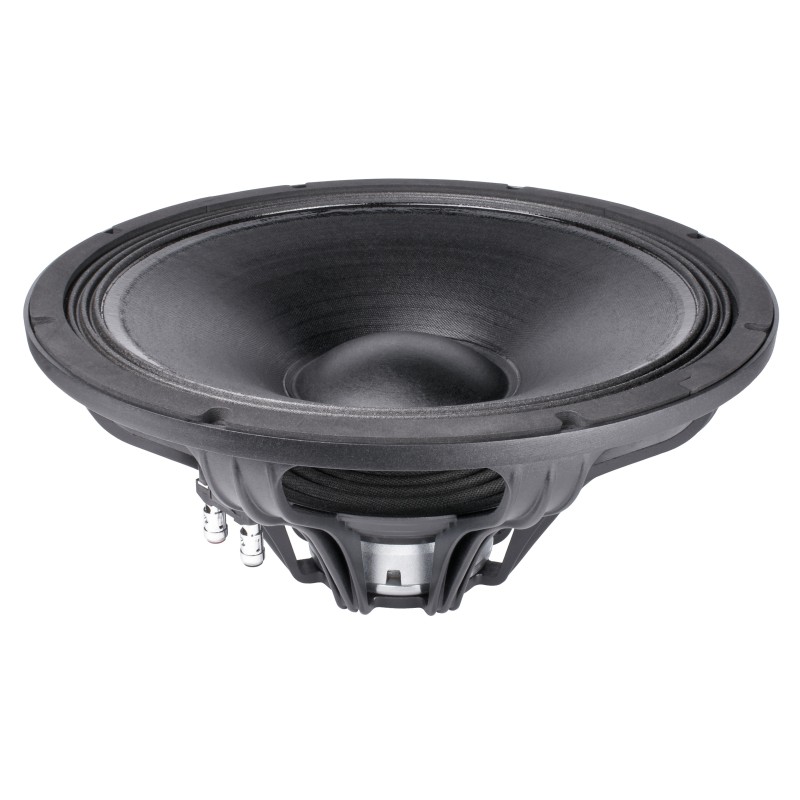

FatalPro 15FH520
R0.00
Tax included
- 1200 W MAXIMUM POWER HANDLING
- VOICE COIL 77 MM (3 IN)
- FREQUENCY RANGE 40÷4000 HZ
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
NOMINAL SPECIFICATIONS
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 356 mm (14.02 in) |
| Depth | 181.3 mm (7.14 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 4.6 kg (10.1 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 5.7 kg (12.6 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling (1) | 600 W |
| Maximum Power Handling (2) | 1200 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 40÷4000 Hz |
| Voice Coil Diameter | 77 mm (3 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 21.5 mm (0.85 in) |
| Magnetic Gap Depth | 12 mm (0.47 in) |
| Flux Density | 1.1 T |
| Magnet | Neodymium Slug |
| Basket Material | Aluminum |
| Demodulation | Aluminum Ring |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 3.4 dm^3 (0.120 ft^3) |
| Spider Profile | 1x variable height waves |
15FH250
