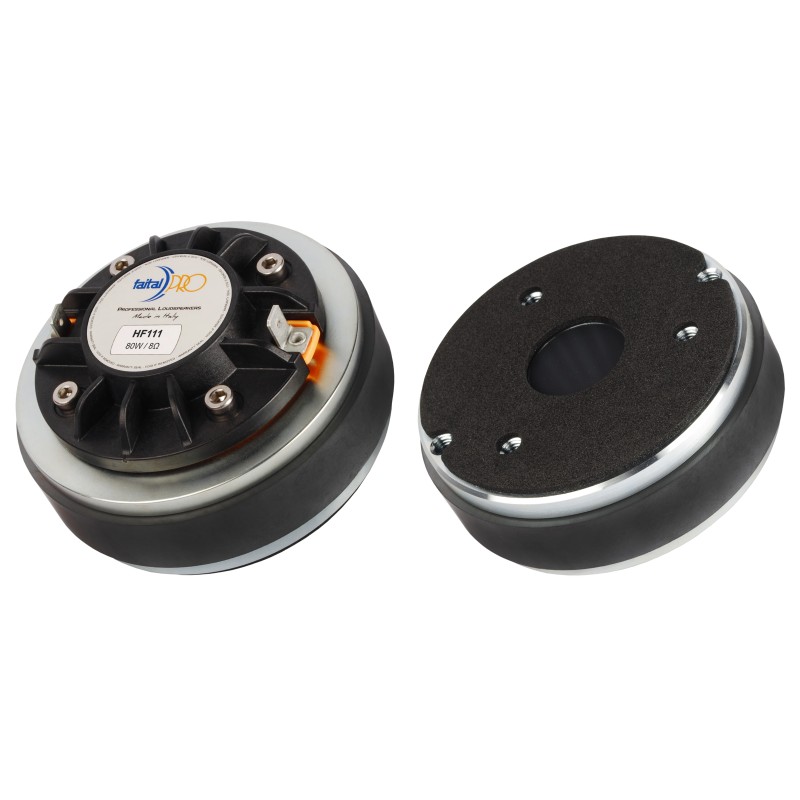

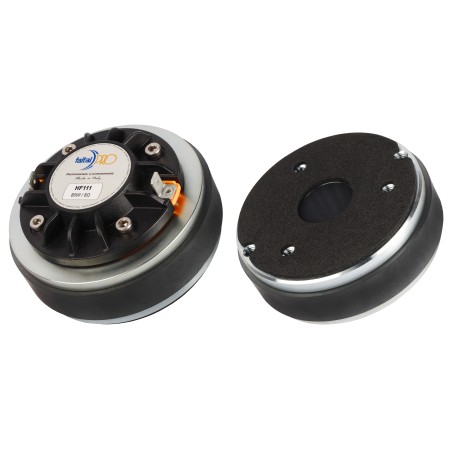

FatalPro HF111
R0.00
Tax included
- 80 W MAXIMUM POWER HANDLING
- VOICE COIL 37 MM (1.46 IN)
- FREQUENCY RANGE 2÷20 KHZ
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling (1) | 40 W |
| Maximum Power Handling (2) | 80 W |
| Minimum Crossover Frequency (3) | 2 kHz |
| Sensitivity (1W/1m) (4) | 107 dB |
| Frequency Range | 2÷20 kHz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 2.2 mm (0.09 in) |
| Magnetic Gap Depth | 2.4 mm (0.09 in) |
| Flux Density | 1.6 T |
| Magnet | Ferrite Ring |
| Re | 5.5 Ohm |
| Phase Plug Design | Annular |
| Exit Angle (5) | 18° Conical |
| NET Air Volume filled by HF Driver | 0.225 dm^3 (0.008 ft^3) |
HF111
