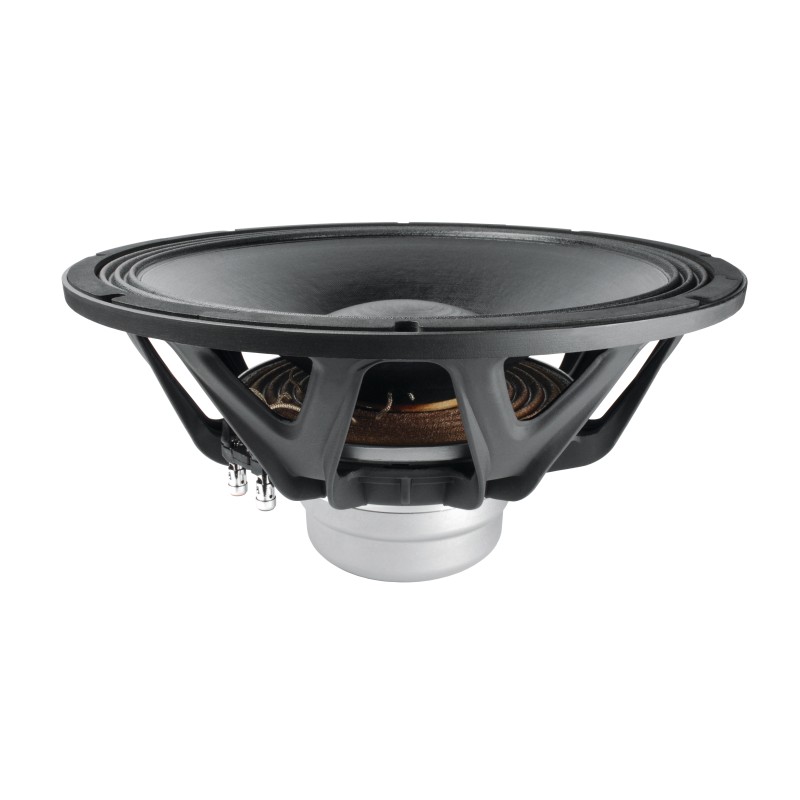

FatalPro 18XL2000
R0.00
Tax included
- 4000 W MAXIMUM POWER HANDLING
- VOICE COIL 118 MM (4.65 IN)
- 66 MM TOTAL EXCURSION (± 33 MM)
- DOUBLE ALUMINIUM DEMODULATION RING
- FREQUENCY RANGE 30÷1600 HZ
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
NOMINAL SPECIFICATIONS
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 227 mm (8.94 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 11.3 kg (24.9 lb) |
| Shipping Box (Single Carton Box) |
490 x 485 x 275 mm (19.3 x 19.1 x 10.8 in) |
| Shipping Weight | 12.8 kg (28.2 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power Handling (1) | 2000 W |
| Maximum Power Handling (2) | 4000 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 30÷1600 Hz |
| Voice Coil Diameter | 118 mm (4.65 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 37.3 mm (1.47 in) |
| Magnetic Gap Depth | 14 mm (0.55 in) |
| Flux Density | 1.2 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminum |
| Demodulation | Double Al Dem. Ring |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 7.3 dm^3 (0.258 ft^3) |
| Spider Profile | 2x non-adjacent symmetrical constant height waves |
