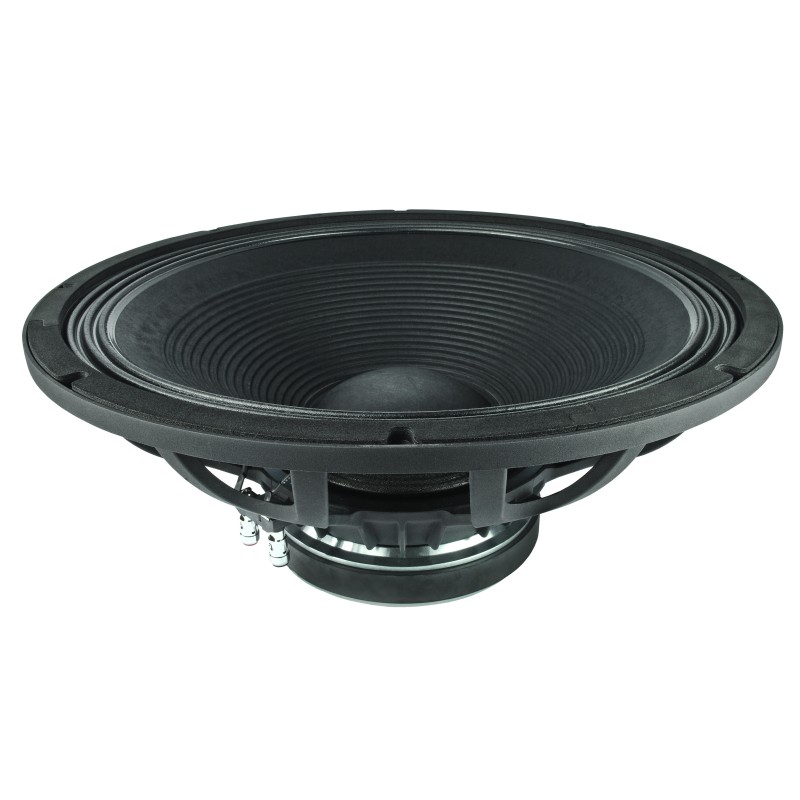

FatalPro 18HP1010
R0.00
Tax included
- 2000 W MAXIMUM POWER HANDLING
- VOICE COIL 100 MM (4 IN)
- FREQUENCY RANGE 35÷2000 HZ
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
NOMINAL SPECIFICATIONS
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 421 mm (16.57 in) |
| Depth | 203.5 mm (8.01 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 10.1 kg (22.3 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 11.5 kg (25.4 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling (1) | 1000 W |
| Maximum Power Handling (2) | 2000 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 35÷2000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 23 mm (0.91 in) |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Flux Density | 1.05 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 7.1 dm^3 (0.251 ft^3) |
| Spider Profile | 2x non-adjacent symmetrical constant height waves |
18HP1010
